▶ Overview

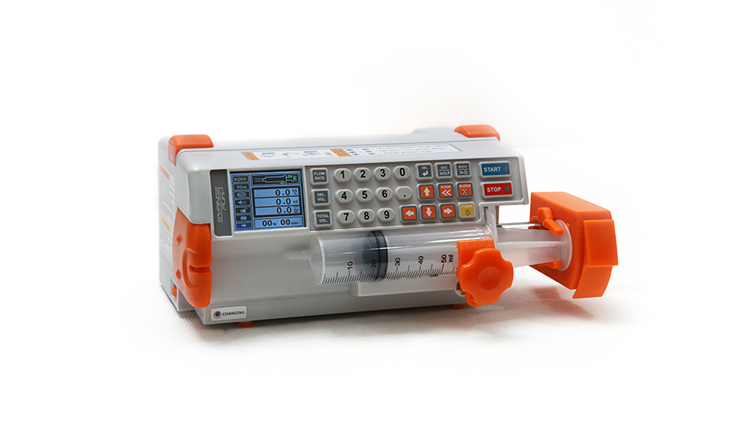

This SP-8800 is intended for the infusion of chemicals such as vasopressor drugs, depressor drugs, anti-coagulants, anesthetic drugs, anti-cancer drugs, oxytocic, nutrition. This device is designed for high flow-rate accuracy and ease of handle in the infusion of solutions with the equipped audio-visual alarms and state-of-the-art sensors.
▶ Features
Alarms (Audio & Visual)
Occlusion, K.V.O. (Infusion Completion), Standby, Near empty, Low battery, Device malfunction, Clamp/Handle lever/slider disengaged, syringe disengaged
Special function
Keypad lock, Retain memory, Remaining time, Alram repeat, Open system, K.V.O., Purge, Bolus, Occ. Level, History call-back, Dosage mode (option), Nurse call (Option), Profile (Option), Central system (Option)
Weight
Approximately 2.5KG (without rechargeable battery 2KG)
Dimension
220 x 130 x 108 (mm)
▶ Specification
Flow rate range
0.1~1200ml
Delivery Volume
0.1~1000ml
Total infused volume
(Volume to be infused)
0.1~1000ml
Accuracy with approved syringe
Within ±2%
Compatible syringe sizes
10ml, 20ml, 30ml and 50ml
Power requirements
AC110/230V, 50/60Hz or DC9.6C, DC12V/24V, 2A
Battery type
Ni-MH rechargeable battery
Battery operating time
3 hours (at 5ml/h)
Operating condition
5~40℃, 30~90% RH (no condensation)
